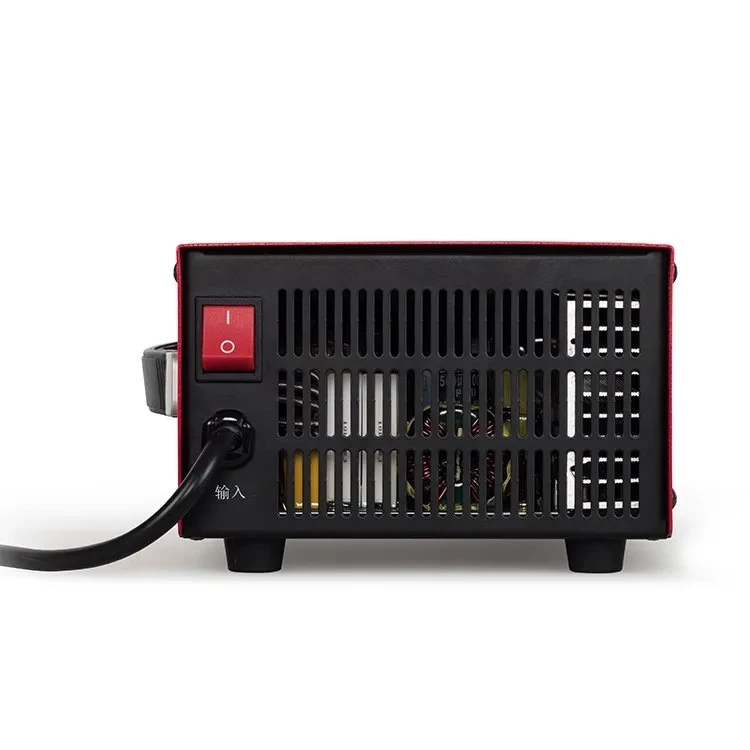

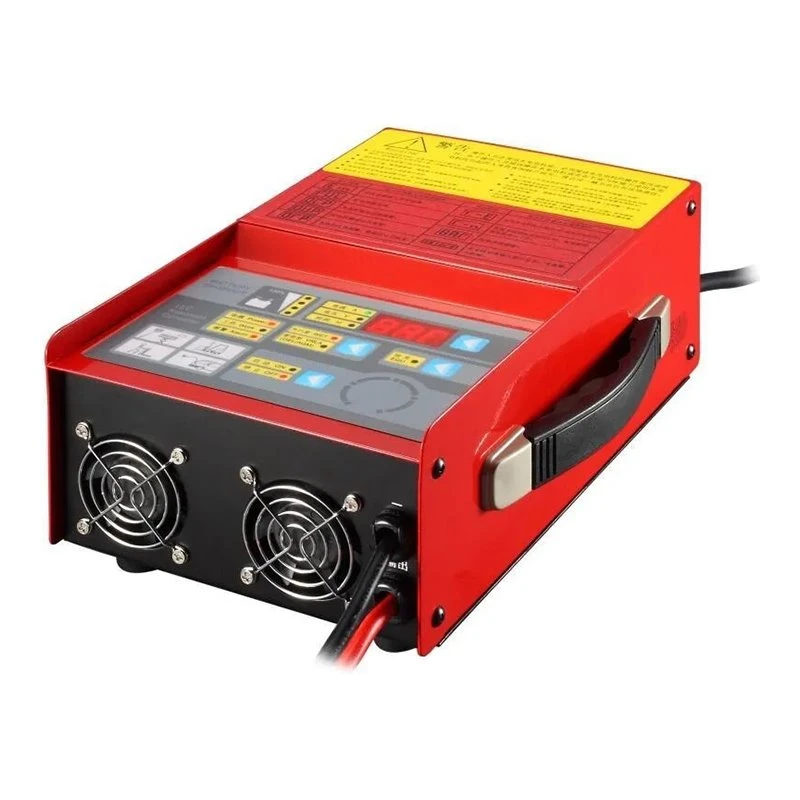

24v Golf Cart Battery Charger
Item: KOMCO 60V Fleet Utility Battery Charger
Mounting Adaptability: Forced-Air Cooled Stationary Framework ($\le$60dB)
Mechanical Integrity: Certified SAEJ 1378 Heavy Structural Seismic Rating
Target Application: Electric Golf Carts, Sightseeing Buses, and Patrol Fleets
MOQ: 5 units minimum for customized plug/voltage hardware runs
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 24v golf cart battery charger in China. Please feel free to buy durable 24v golf cart battery charger made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
Product Details
Our fleet customers told us what breaks a yard charger: not the electrical load, but the pounding. Carts roll over rough terrain, the rack vibrates all night, and a charger without mechanical certification starts shedding solder joints. That is why this unit is built and certified to the SAEJ 1378 seismic standard - the internal frame and the MCU board are laid out to keep working through continuous heavy vibration.
On the electrical side the firmware tracks the battery's life curve and capacity matrix, and cuts power right at the gassing boundary, so a pack is never left in the dull over-charge zone that sulfates the plates. The charging map uses pulse current, which keeps terminals clean and extends lead-acid plate life. Input is dual-voltage - 110V or 220V single phase at 47-63Hz - so the same stock serves fleets across North America, Europe and Asia without a transformer swap.
The circuit boards get a conformal coating against humidity and dust, output regulation holds within ±1 percent, and the two fans keep the cabinet under 60dB while it delivers 60V at 21.5A continuous. It meets IEC 60335-2-29 with 100MΩ insulation resistance at 500Vac.
Technical Parameters
|
Input Line Tolerance |
AC110V ±15% / AC220V ±15% Adaptive Single Phase (47-63Hz) |
|
Output Output Window |
Nominal: 60V Output | Rated Operating Delivery: 60V, 21.5A Continuous |
|
Power Transfer Peak |
97% Maximum Efficiency | Steady Regulation:±1% (Load/Voltage) |
|
Chassis Protection & Noise |
Conformal-Coated Circuit Boards | Auditory Noise Envelope: < 60dB |
|
Temperature Range |
-30°C to 45°C (Working) | -40°C to 70°C (Storage Safety) |
|
Compliance Marks |
IEC 60335-2-29 Safety | Insulation Resistance: 100MΩ/ 500Vac |
Our Company
Guangdong-based Huizhou Qiangfeng Power Technology Co., Ltd., founded in 1993, supplies battery chargers, inverters, voltage stabilizers, MPPT solar charge controllers and solar power systems, and runs OEM/ODM programs for golf and utility fleets with factory-direct pricing worldwide.
Our Advantages
One Stock, Two Grids
Adaptive AC110V / AC220V single-phase input serves North America, Europe and Asia from one unit - no transformer swap.
Cut at the Gassing Boundary
MCU cuts power at the gassing point, stopping the dull over-charge that sulfates plates.
Built for Fleet Duty
Dual-fan forced-air cooling, conformal-coated boards and ±1 percent regulation keep group charging online at 97 percent efficiency.
