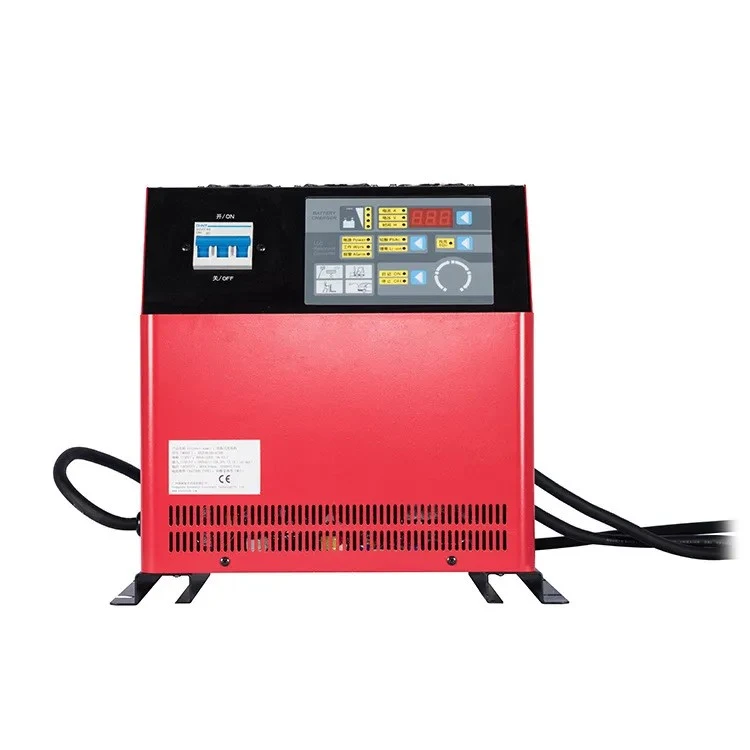

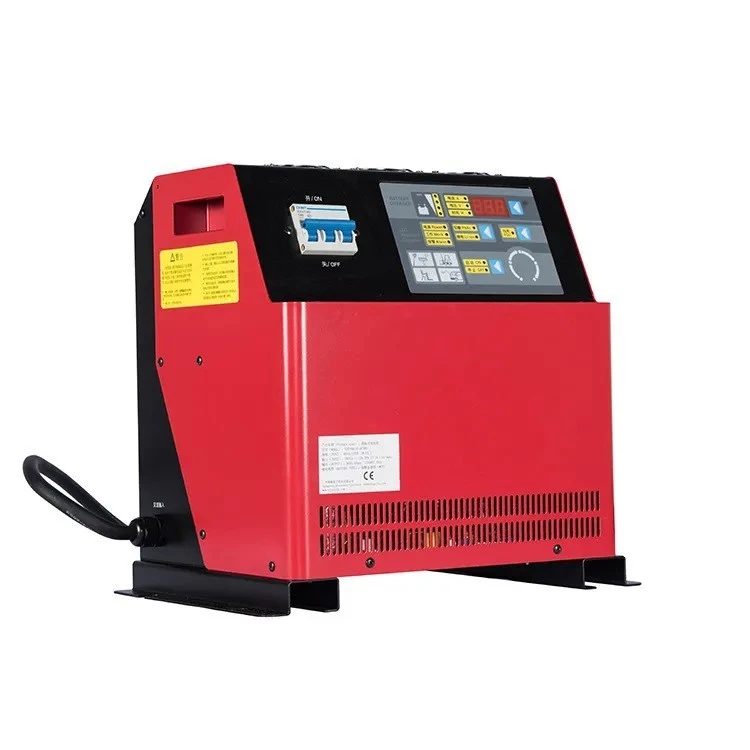

Hyster forklift Battery Charger
Item: KOMCO XZCF 120A Heavy Fleet Charger
Physical Specs: Compact G-Type Enclosure | Color: High-Visibility Red (Weight: 30kg Net)
Specialized Feature: Dual-Key Interlock Lead-Acid Desulfation Sequence
Custom Configurations: Factory automatic temperature voltage compensation enabled
Warranty: 1-Year standard factory warranty protection plan with 24/7 B2B support
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of hyster forklift battery charger in China. Please feel free to buy durable hyster forklift battery charger made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
Product Details
Most of the Hyster fleets we talk to come to us one of two ways: the OEM charger burned out and the brand's replacement quote does not fit the budget, or the batteries are sulfated and the fleet wants one more season out of them.
The XZCF answers the first with a direct drop-in - voltage, current and connector are confirmed at order, so the truck charges on its old routine. It answers the second with temperature and plate care. The auto-compensation engine holds a 25°C lead-acid baseline and adjusts output by ±5V per degree per cell block; on a 40°C afternoon that keeps the pack from cooking, and at 5am it stops the under-charge that leaves a truck short mid-shift.
For old packs, the desulfation run is guarded by a dual-key interlock: during standby the operator presses Equalize and then Start, and the unit sends resonant wave pulses that dissolve crystallized lead sulfate off the plates. The electrical side is straightforward - 380Vac ±15% three-phase input at 47-63Hz, 58.4V max / 120A max / 7008W, voltage and current accuracy within 1 percent - and the G-type chassis at 350 by 272 by 350 mm carries the 30kg weight on a 2.5m 35mm² output cord. Efficiency stays above 94 percent and noise under 60dB, and the digital panel rotates current, voltage and elapsed time every five seconds, flashing the fault code when something trips.
Technical Parameters
| Grid Input Boundaries | 380Vac ±15% Three-Phase Input (Operational Range: 323V-437V, 47-63Hz) |
| DC Power Limits | 58.4V Max Voltage Calibration | 120A Max Current Output | 7008W Rated Power Limit |
| Temperature Auto-Compensation | ±5V/℃ per cell block (With Lead-Acid 25°C baseline) |
| Output Accuracy Profile | High Voltage Accuracy≤1% | Current Accuracy ≤1% | Ripple: ≤1% |
| Mechanical & Cables | Dimensions: 350*272*350 mm | 2M 4*4mm² Input Cord | 2.5M 35mm² Heavy Output Cord |
| Thermal & Operating Window | ≧94% Max Efficiency | Noise: ≦60dB | Operating Temp: -20°C to 45°C (Storage: -45°C to 85°C) |
| Automation | Microprocessor capacity monitor, high-current to float transition, green lamp |
| Warranty | 1-year standard factory plan with 24/7 B2B support |
Our Company
Huizhou Qiangfeng Power Technology Co., Ltd. was founded in 1993 in Guangdong, China, and builds battery chargers, inverters, voltage stabilizers, MPPT solar charge controllers and solar power systems, offering OEM/ODM replacement and factory-direct supply to forklift fleets worldwide.
Our Advantages
Charges Like the OEM Unit Did
The XZCF replaces a Hyster factory charger on the same routine - voltage, current and connector matched at order, so the fleet does not change how it works.
The Curve Follows the Weather
Automatic temperature compensation shifts output ±5V per degree per cell block from a 25°C lead-acid baseline, protecting packs across hot yards and cold mornings.
Desulfation Without the Surprise
A dual-key interlock (Equalize then Start) keeps the deep recovery cycle deliberate - no accidental triggering, real plate cleaning when it runs.
