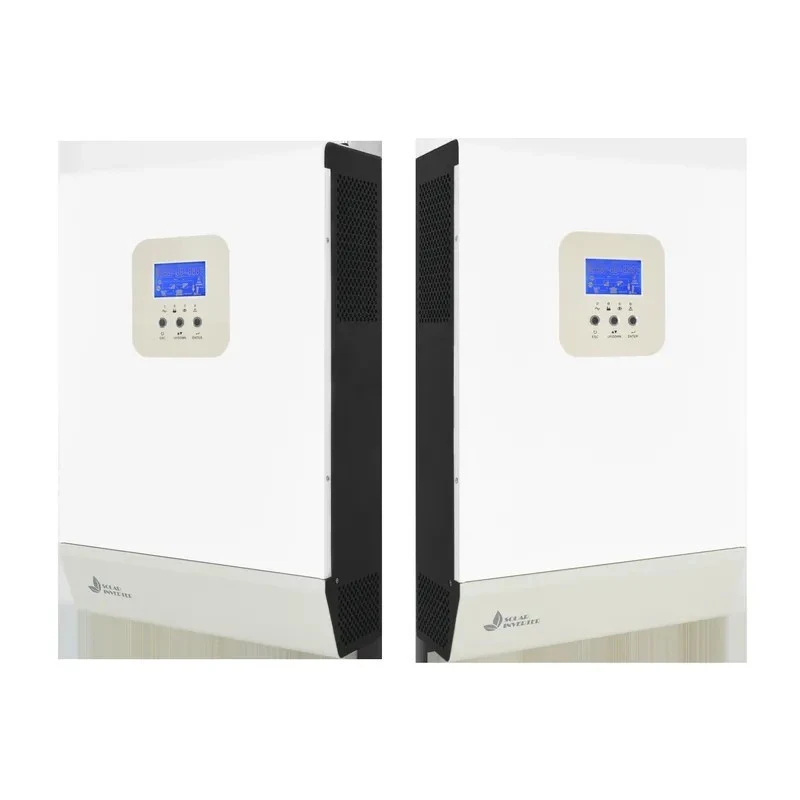

10kw Solar Hybrid Inverter
Item Title: KOMCO GA Series High Speed Energy Storage Rapid Inverter
Output Efficiency Profile: High Frequency Topology Reaching over 94% Peak Efficiency
Specialized Capability: Independent Multi Parameter User Calibration Screen Menu
Lead Time: 20-25 working days factory batch schedule or instant over the counter Lagos supply
Warranty Asset: 1 Year standard factory protection plan with round the clock B2B support
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 10kw solar hybrid inverter in China. Please feel free to buy durable 10kw solar hybrid inverter made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
Product Details
The GA series inverter handles the three sources in one cabinet. Solar comes in through the MPPT input - up to 5500W per unit - and charges the 48V battery bank; the bank carries the load through the evening; and the AC input takes over when the bank is down. Transfer to battery is 10ms for computers and 20ms for household loads, which keeps a freezer or a small server alive through a flicker.
Output is pure sine wave at 208/220/230/240VAC with a 10000VA peak per unit, and the overload curve - 10s at 110-130%, 3s at 130-150% - is the margin that lets pumps and compressors start without dropping the house. The LCD reads real load power, and the RS232 plus expansion slots (BMS, WiFi, dry contact) let a building manager see what the system is doing. For installations that grow past one unit, the parallel port groups up to nine.

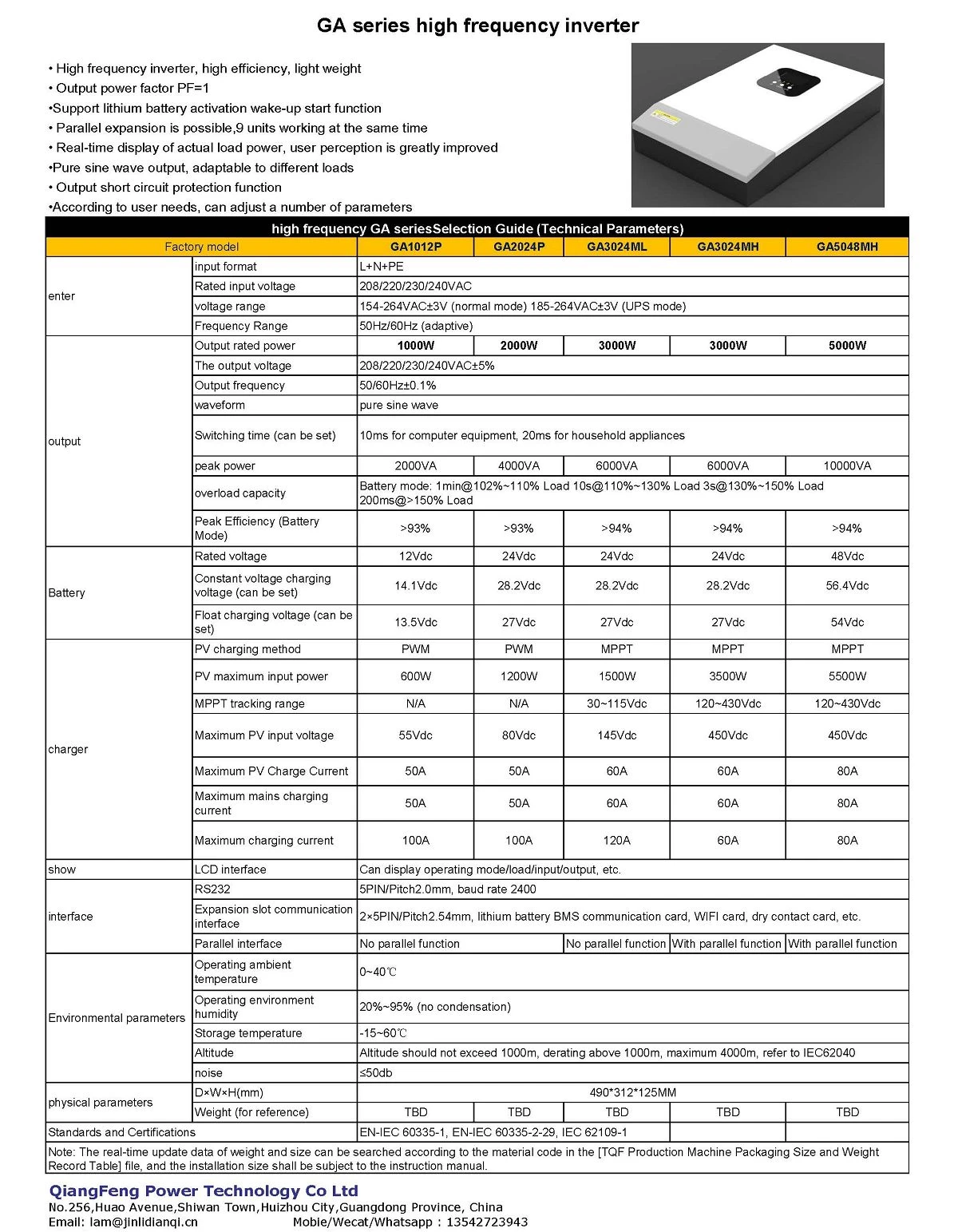

Technical Parameters
|
Overload Protection Timers |
110% load cuts at 10 seconds | 130% load cuts at 3 seconds |
|
Communication Slots Arrangement |
Dual 5PIN expansion layout supporting BMS Wi-Fi and dry contact cards |
Our Company
Huizhou Qiangfeng Power Technology Co., Ltd., established in 1993 and based in Guangdong, China, manufactures battery chargers, inverters and solar power systems for international buyers, offering OEM/ODM service and factory-direct pricing to customers worldwide.
Our Advantages
Solar-First Energy Management
Loads are fed from solar before the battery or the grid is touched, so daytime generation is spent where it is produced.
Sensitive-Load Safe Output
A clean sine wave at 208/220/230/240VAC keeps freezers, servers and medical gear running without stress.
Wide-Input Grid Tolerance
The AC input holds 154-264VAC in normal mode and 185-264VAC in UPS mode, absorbing swings that narrow-range units cannot.
