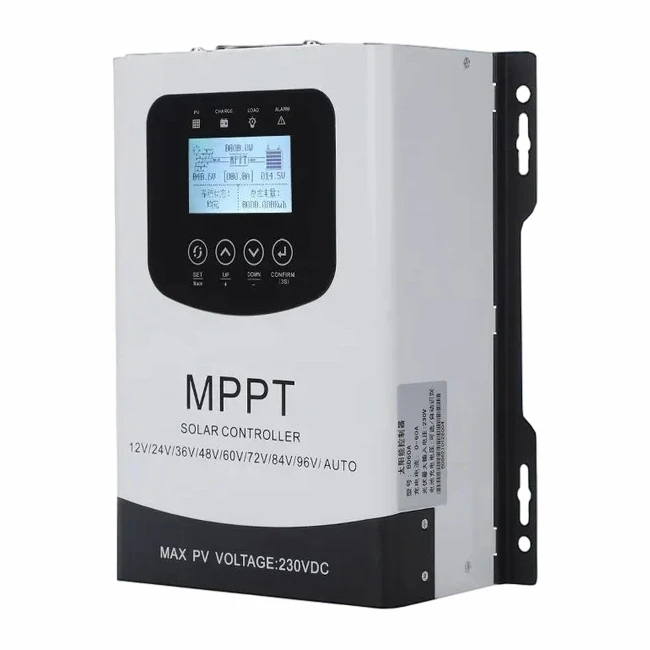

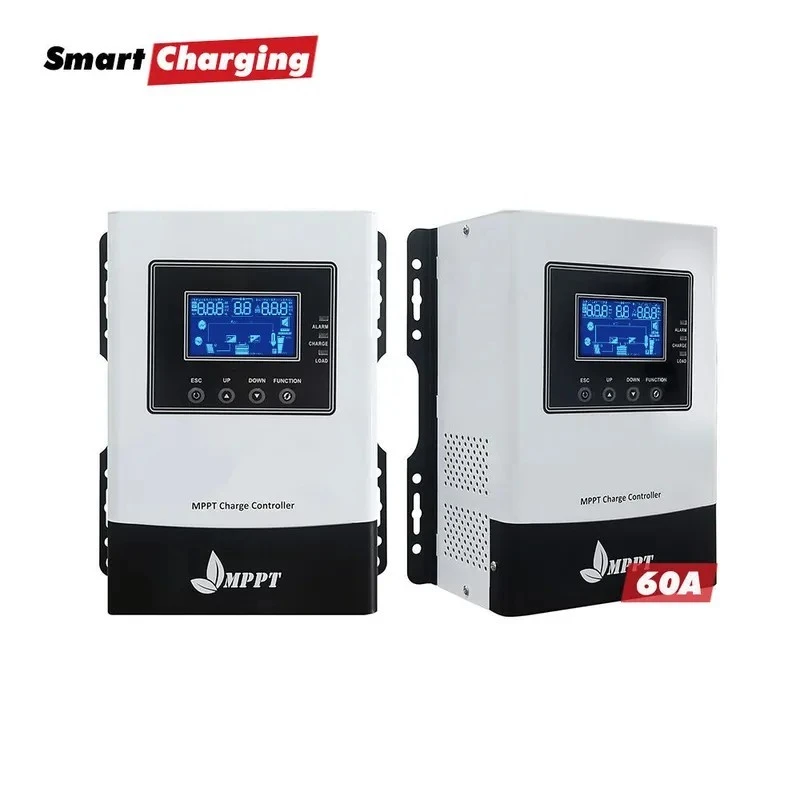

60V MPPT Solar Charge Controller
Item Title: KOMCO BTXZ Portable Energy Storage Rapid MPPT Controller
Physical Specifications: Space-saving, low-profile enclosure featuring built-in mounting brackets.
Control Architecture: Dynamic LCD matrix screen with a 5-second automatic data cycling loop.
Lead Time: Shipped from the factory within 20 to 25 business days.
Warranty Asset: Included 12-month standard manufacturer warranty protection policy.
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 60V MPPT Solar Charge Controller in China. Please feel free to buy durable 60V MPPT Solar Charge Controller made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
This 60V MPPT Solar Charge Controller charges 60V battery banks from PV arrays; menu selection also covers 12V, 24V, 36V, 48V, 72V, 84V and 96V. It works with sealed lead-acid, gel, flooded, LiFePO4 and Li-ion packs, accepts PV open-circuit voltage up to 230V and delivers charging current up to 60A. LCD setup, 8-pin RS485 and IP21 enclosure are standard; CE/RoHS papers and test records follow each order; OEM/ODM open to distributors and solar brands.
Product Details
Advanced MPPT Technology for High-Efficiency Solar Charging
Our 60V MPPT Solar Charge Controller features full-range I-V curve scanning technology to continuously track the maximum power point (MPP), achieving conversion efficiency of up to 97%. With a low PV startup threshold of just 3V above battery voltage, it maintains stable charging performance even under low-light and rainy conditions.
Wide Battery Compatibility & Flexible Charging Settings
Designed for versatile solar energy systems, this controller supports multiple battery chemistries and flexible voltage configurations:
- Lead-Acid Batteries: Automatic 12V/24V/36V/48V/96V system recognition, with selectable 60V/72V/84V configurations.
- Lithium Batteries: LiFePO4 (3.2V per cell) and Li-ion (3.7V per cell), supporting 2–45 cells.
- USER Mode: Customizable bulk, float, equalization and discharge protection parameters, with an adjustable voltage range of 8V–170V.
Comprehensive Protection & Reliable Operation
Built-in protection functions help ensure safe and stable operation, including overcharge protection, over-discharge protection (LVD), overload protection, short-circuit protection and hardware isolation.
The IP21-rated vented enclosure features natural convection cooling for effective heat dissipation. An RS485 communication interface enables multiple units to be connected for centralized status monitoring and parameter configuration.
OEM/ODM Customization & Quality Assurance
We provide flexible OEM/ODM services to meet different market and project requirements, including custom logos, enclosure colors, packaging artwork, firmware and parameter configurations.
Each production batch undergoes incoming quality control (IQC), in-process inspection, burn-in testing and final testing. CE and RoHS documentation is available.
- MOQ & Samples: Quoted according to order requirements.
- Lead Time: Approximately 20–25 working days.
- Packaging: Export-standard cartons.
- Technical Support: Wiring diagram PDF available for installation reference.
Wide Range of Applications
Suitable for off-grid solar power systems, residential solar installations, industrial backup power, telecommunications base stations and remote monitoring systems.
Technical Parameters
|
Technical Parameter |
Recommended Specification |
|---|---|
|
Model |
KOMCO BTXZ |
|
Controller Type |
MPPT Solar Charge Controller |
|
Rated Battery Voltage |
60V |
|
Supported Battery Voltage |
12V–96V, subject to operating mode |
|
Charging Current |
Up to 60A |
|
Maximum PV Open-Circuit Voltage |
230V DC |
|
MPPT Operating Voltage Range |
To be confirmed |
|
PV Startup Voltage |
Battery voltage +3V, subject to confirmation |
|
Maximum PV Input Power |
To be confirmed by battery voltage |
|
Conversion Efficiency |
Up to 97%, test conditions to be confirmed |
|
MPPT Tracking |
Full I-V Curve Scanning |
|
Battery Types |
Sealed Lead-Acid, Gel, Flooded, LiFePO4 and Li-ion |
|
Charging Stages |
Bulk, Absorption, Float and Equalization |
|
Communication |
8-pin RS485 |
|
Protection |
Overcharge, Over-discharge, Overload and Short-circuit Protection |
|
Operating Temperature |
-20°C to +40°C |
|
Maximum Operating Altitude |
3000m |
|
Cooling |
Natural Convection |
|
Enclosure Protection |
IP21 |
|
Dimensions |
218 × 265 × 100 mm |
|
Display |
LCD, Chinese/English |
|
Warranty |
12 Months |
|
Lead Time |
20–25 Working Days |
Our Company
KOMCO is the power hardware line of Huizhou Qiangfeng Power Technology Co., Ltd., founded in 1993 in Guangdong, China - chargers, inverters, stabilizers, MPPT controllers, solar systems; OEM/ODM worldwide.
Our Advantages
Wide 60V Battery Coverage
60V banks, 12V-96V menu range.
Custom Battery Profiles
3.2V/3.7V per cell, 2-45 cells, 8V-170V USER.
Full Protection Suite
overcharge, LVD, overload, short-circuit.
Flexible OEM / ODM Support
logo, case, packaging, firmware.
FAQ
Q: What is a 60V MPPT controller?
A: Charges 60V banks from PV with MPPT tracking.
Q: Does it work with 60V systems?
A: Yes - 60V selectable; 12V-96V auto-detect.
Q: Maximum PV input voltage?
A: 230V DC open circuit.
Q: Maximum solar panel power?
A: 60A at bank voltage, PV under 230V.
Q: Which battery types?
A: Lead-acid, gel, flooded, LiFePO4, Li-ion.
Q: LiFePO4 support?
A: Yes - 3.2V/cell, 2-45 cells, menu limits.
Q: Custom charging parameters?
A: Yes - USER profile, 8V-170V.
Q: RS485 or CAN?
A: 8-pin RS485 multi-unit, no CAN.
Q: Protection functions?
A: Overcharge, LVD, overload, short-circuit, isolation.
Q: OEM/ODM services?
A: Yes - logo, enclosure, packaging, firmware, settings.
Q: MOQ for bulk orders?
A: Per order; trials ok.
Q: Samples and datasheets?
A: Yes - samples and datasheets.
