80a 48v Mppt Solar Charge Controller
Item Title: KOMCO KZA Smart Telecom Base Station Solar Regulator
Telemetry Sync: 8 Pin RS485 Serial Interface for Server Network Linking
PV Input Boundary: Photovoltaic Open Circuit Window Accepting 0 to 230V Safely
Environmental Tolerances: Operational Altitude Scaling from 0 to 3000 Meters
Production Cycle: 20-25 working days factory production turnaround
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 80a 48v mppt solar charge controller in China. Please feel free to buy durable 80a 48v mppt solar charge controller made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
This 80A 48V MPPT Solar Charge Controller charges 48V banks from a PV array rated to 230V open-circuit. Charging current is adjustable 0-80A, close to 4kW at 48V; the menu covers lead-acid 12-96V, gel, LiFePO4, Li-ion and USER. An 8-pin RS485 port links to a site server for status and settings, and the DC output runs without a battery. Bulk/absorption/float with temperature compensation; 20-25 days delivery, 12-month warranty.
Product Details
High-Efficiency MPPT Charging with 80A Adjustable Output
This 60V MPPT Solar Charge Controller features advanced full-range I-V curve scanning technology to continuously track the maximum power point, delivering conversion efficiency of up to 97%. With an adjustable charging current of up to 80A, it supports different battery bank capacities and solar array configurations.
The actual charging output depends on available PV power and battery voltage. For example, an 80A output at 48V requires approximately 4kW of solar power, while a 24V battery system requires approximately half that PV power for the same charging current.
With a maximum PV open-circuit voltage of 230V, the controller supports longer series-connected PV strings, particularly for 48V battery systems. The PV startup threshold is only 3V above battery voltage, allowing charging to begin under low-light conditions, although actual charging current depends on available solar irradiance.
Flexible Battery Compatibility & Intelligent Charging

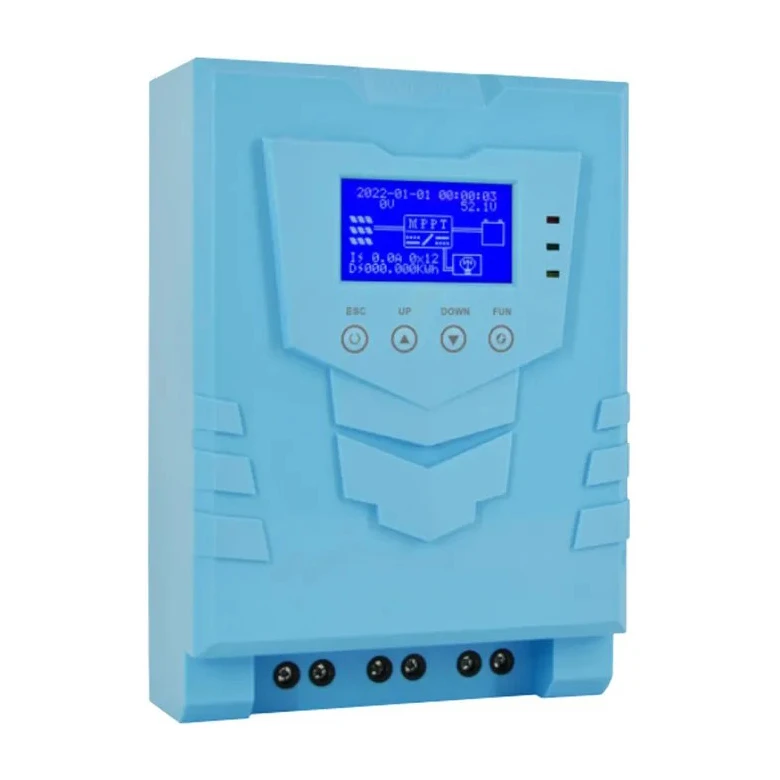

The controller features a touch-key LCD interface for convenient battery selection and charging parameter configuration.

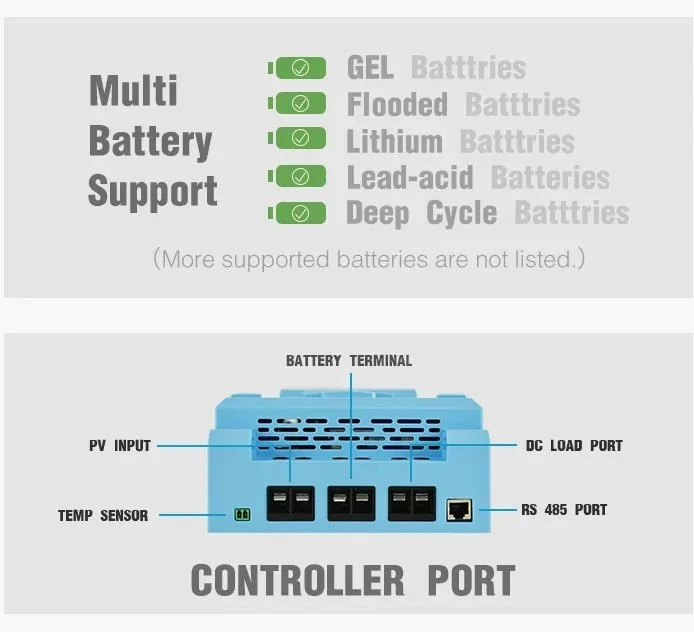

Supported battery types and settings include:
- Lead-Acid Batteries: 12V–96V automatic recognition, with manual voltage selection for 60V/72V/84V/96V systems.
- Gel Batteries: Supports battery systems up to 96V.
- LiFePO4 Batteries: 3.2V per cell configuration.
- Li-ion Batteries: 3.7V per cell configuration, supporting 2–45 cells.
- USER Mode: Adjustable battery voltage parameters from 8V to 170V for customized charging configurations.
- Additional functions include DC load output without a battery connected when PV power is available, as well as battery charging voltage activation to help wake up a lithium battery BMS after protection shutdown.
RS485 Remote Monitoring & Multi-Unit Networking
Equipped with an 8-pin RS485 communication port, the controller can connect to a site server for remote operating status monitoring and parameter configuration.
Multiple controllers can share the same communication network, allowing centralized monitoring and alarm reporting to a remote office. This makes the unit suitable for distributed solar power systems, telecom stations and unattended remote installations.
Comprehensive Protection & Reliable Operation
Built-in protection functions help safeguard the solar charging system and connected equipment:
- Overcharge Protection
- Over-Discharge Protection
- Overload Protection
- Short-Circuit Protection
The controller is designed with a vented IP21 enclosure and natural convection cooling for reliable operation without additional cooling fans.
Wide Range of Solar Power Applications
Designed for various off-grid and backup power requirements, including:
- Telecom Base Stations
- Off-Grid Solar Power Systems
- Industrial Backup Power Systems
- Remote Monitoring Stations
- Unattended Solar Power Installations
OEM/ODM Manufacturing & Quality Assurance
We provide flexible OEM/ODM services for distributors, importers, solar system integrators and brand owners.
Customization options include:
- Private Logo & Branding
- Custom Enclosure Colors
- Customized Packaging & Artwork
- Firmware & Charging Parameter Configuration
Each unit undergoes PV input testing, charging performance checks and protection function testing before packing.
Product Supply Information:
- Warranty: 12 Months
- Production Lead Time: 20–25 Working Days
- OEM/ODM: Available
- Quality Control: Incoming Inspection, Production Testing & Final Inspection
- Technical Support: Wiring Diagram Available
Technical Parameters
|
Specification |
Details |
|---|---|
|
Model |
KOMCO KZA 80A |
|
Controller Type |
MPPT |
|
Nominal Battery Voltage |
48V |
|
Rated Charging Current |
80A |
|
Adjustable Charging Current |
0–80A |
|
Maximum PV Open-Circuit Voltage |
230V DC |
|
PV Startup Voltage |
Battery Voltage + 3V |
|
Maximum Charging Power |
Approx. 4,000W (48V system) |
|
Lead-Acid Battery Voltage |
12V–96V, automatic / manual selection |
|
Gel Battery Support |
Up to 96V |
|
LiFePO4 Battery |
3.2V per cell, 2–45 cells |
|
Li-ion Battery |
3.7V per cell, 2–45 cells |
|
USER Mode Voltage Range |
8V–170V |
|
Charging Stages |
Bulk, Absorption, Float, Equalization |
|
Temperature Compensation |
Yes |
|
Communication Interface |
8-Pin RS485 |
|
Display |
Touch-Key LCD |
|
Display Languages |
Chinese / English |
|
Protection Functions |
Overcharge, Over-Discharge, Overload, Short-Circuit |
|
Operating Temperature |
-20°C to +40°C |
|
Enclosure Protection |
IP21 |
|
Maximum Operating Altitude |
3,000m |
|
Product Dimensions |
218 × 265 × 100 mm |
|
Warranty |
12 Months |
|
Production Lead Time |
20–25 Working Days |
| Rated charge current | 80A, adjustable 0-80A (a 48V system at full current sustains close to 4kW of charging) |
| Charging | MPPT automatic maximum power tracking, fast / balanced / float stages, temperature compensation |
| System voltage | lead-acid 12V to 96V auto-detect with manual override; gel to 96V; LiFePO4 and Li-ion per-cell voltage 3.2V / 3.7V with 2-45 cells per string; USER mode with limits up to 170V |
| PV input | Open circuit up to 230V; charging kicks in when PV exceeds battery by 3V (rainy-day low-current charging) |
Our Company
KOMCO is the power hardware line of Huizhou Qiangfeng Power Technology Co., Ltd., founded in 1993 in Guangdong, China - chargers, inverters, stabilizers, MPPT controllers, solar systems; OEM/ODM worldwide.
Our Advantages
Battery agnostic
Lead-acid, gel, flooded, deep-cycle and lithium, with lithium string count set on the LCD.
PV input range
Open circuit 0-230V; charging starts when PV exceeds battery voltage by 3V (low-current charging on rainy days)
Our services
Factory direct with OEM support, 12-month warranty and 20-25 working days lead time.
KOMCO builds these on the KZA platform and tests each unit before packing: PV input, charging performance, protection response and RS485 link. OEM/ODM covers logo, enclosure colour, packing and firmware parameters; samples quote per order. Export cartons ship in 20-25 working days, 12-month warranty.
FAQ
FAQ
Q: Rated charging current?
A: 80A, adjustable 0-80A.
Q: Max PV open-circuit voltage?
A: 230V DC.
Q: MPPT operating range?
A: Battery +3V up to 230V.
Q: Max charging power at 48V?
A: About 4kW at full 80A.
Q: Battery types?
A: Lead-acid, gel, flooded, LiFePO4, Li-ion.
Q: How do I build a 48V bank?
A: Four 12V lead-acid in series, or 15 LiFePO4 cells.
Q: How many panels in series?
A: Keep total Voc under 230V, including cold rise.
Q: RS485 protocol and baud rate?
A: 8-pin serial for status and settings; protocol details on request.
Q: Can it run with no battery?
A: Yes - DC output works without a battery.
Q: OEM/ODM?
A: Logo, enclosure, packing, parameter sets.
Q: Warranty and lead time?
A: 12 months; 20-25 working days.
Q: Datasheet before ordering?
A: Yes, on request.
