96v Mppt Solar Charge Controller
Item Title: KOMCO BTXZ Smart Municipal Lighting Solar MPPT Regulator
Output Control Matrix: Software Configurable DC Load Output Terminal (ON OFF Switch Command)
Array Tracking Efficiency: Reaches up to 97 percent energy utilization rate optimization
Lead Time: 20 to 25 working days factory production turnaround
Regulatory Clearance: Certified and marked under standard international trade markings
Product Introduction
Huizhou Qiangfeng Power Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 96v mppt solar charge controller in China. Please feel free to buy durable 96v mppt solar charge controller made in China here from our factory. All customized products are with high quality and competitive price. Contact us for quotation and free sample.
Product Details
City lighting jobs differ from a single pole install in one important way: scale. A branch of poles along a road or around a park is fed from one controller, so the numbers matter - 96V keeps the voltage drop acceptable over several hundred metres of cable, and 60A of charge current keeps the bank healthy through the daily duty cycle.
The DC load terminal takes an on/off command, which is how the whole branch turns on at dusk and off at dawn without a timer at every pole. Charging is MPPT with fast, balanced and float stages and temperature compensation; the unit starts charging as soon as the panel is about 3V above the battery, so overcast stretches still deliver low current rather than a dead bank.
Battery chemistry is set on the LCD - lead-acid, gel, flooded or lithium, with lithium strings entered as a cell count - and the 8-pin RS485 port lets the maintenance office read status and settings for the whole network from one screen. The controller is rated IP21 for pole-cabinet mounting, works up to 3000m altitude, and ships in 20 to 25 working days with a 12-month warranty.

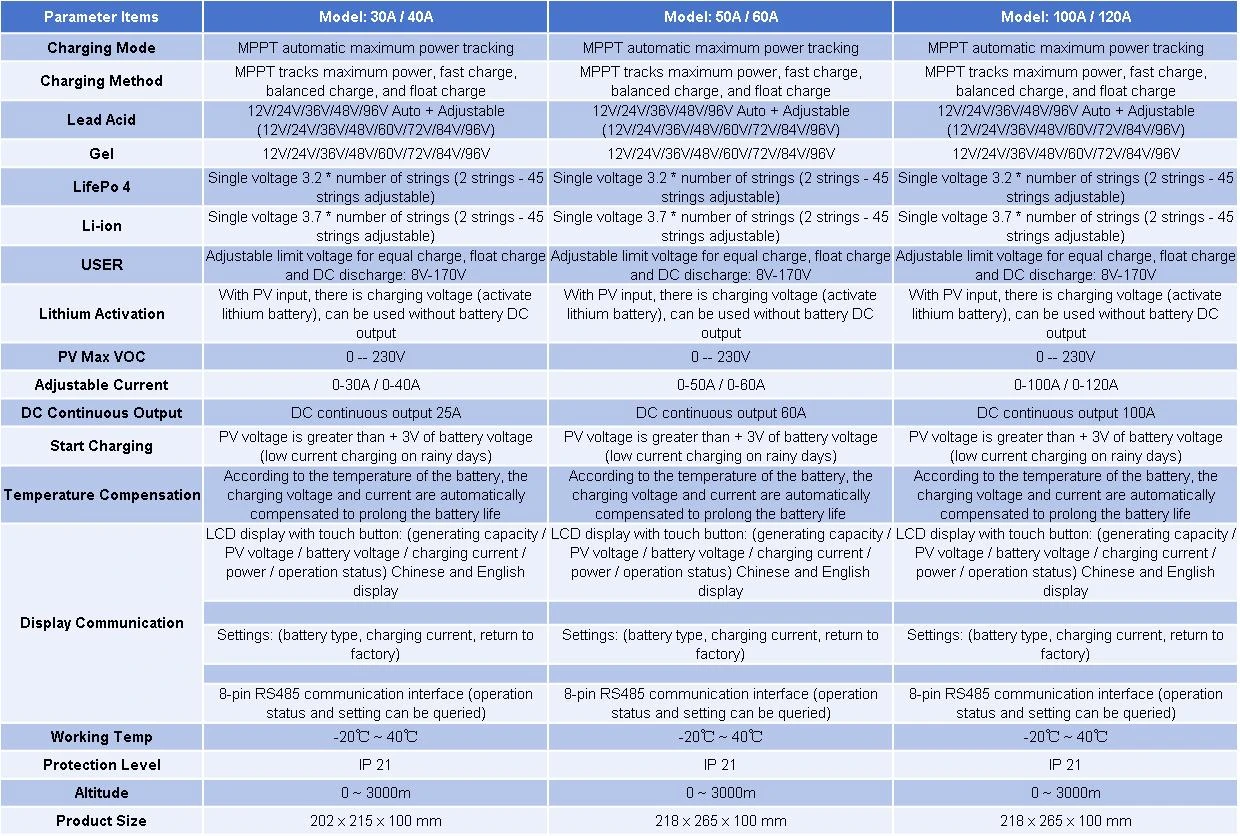

Technical Parameters
| DC Continuous Output Capacity | Direct direct current load delivery options up to 25A 60A or 100A directly |
| Chassis Geometry Build | 202x215x100mm compact frame rated under standard IP21 profiles |
Our Company
Founded in 1993, Huizhou Qiangfeng Power Technology Co., Ltd. is a professional manufacturer of battery chargers, inverters and solar power systems in Guangdong, China, with OEM/ODM service and factory-direct pricing worldwide.
Our Advantages
Rainy-week charging
The unit starts at just 3V above battery, so low current still flows through overcast spells.
One Click Parameter Adjusting
Up, down, set, and confirm touch buttons allow field crews to toggle the DC load status manually for rapid onsite circuit tests.
LCD Display
Bilingual LCD and 8-pin RS485 keep the status readable locally and on the city's monitoring screen.
FAQ
